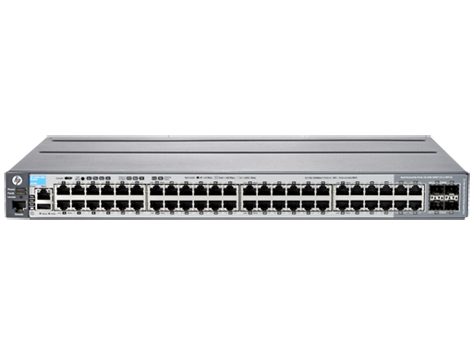

The HP 2920 Switch Series consists of four switches: the HP 2920-24G and 2920-24G-PoE+ Switches with 24 10/100/1000 ports, and the HP 2920-48G and 2920-48G-PoE+ Switches with 48 10/100/1000 ports. Each switch has four dual-personality ports for 10/100/1000 or SFP connectivity.
In addition, the 2920 switch series supports up to four optional 10 Gigabit Ethernet (SFP+ and/or 10GBASE-T) ports, as well as a two-port stacking module. These options provide you with flexible and easy-to-deploy uplinks and stacking.
Together with static and RIP routing, robust security and management, enterprise-class features, free lifetime warranty, and free software updates, the 2920 switch series is a cost-effective, scalable solution for customers who are building high-performance networks. These switches can be deployed at the enterprise edge, in remote branch offices, and in converged networks.
| General Information | |
|---|---|
| Manufacturer: | Hewlett-Packard |
| Manufacturer Part Number: | J9729A |
| Manufacturer Website Address: | http://www.hp.com/uk |
| Brand Name: | HP |
| Product Series: | 2920 |
| Product Model: | 2920-48G-POE+ |
| Product Name: | 2920-48G-POE+ Switch |
| Product Type: | Layer 3 Switch |
| Interfaces/Ports | |
| Total Number of Network Ports: | 48 |
| Token Ring Port: | No |
| LRE Port: | No |
| Bypass: | No |
| Modular: | No |
| Management Port: | Yes |
| USB: | Yes |
| Number of PoE+ (RJ-45) Ports: | 48 |
| Port/Expansion Slot Details: |
|
| Media & Performance | |
| Media Type Supported: | Twisted Pair |
| Ethernet Technology: | Gigabit Ethernet |
| Network Technology: | 10/100/1000Base-T |
| I/O Expansions | |
| Number of Total Expansion Slots: | 7 |
| Expansion Slot Type: |
|
| Shared SFP Slot: | Yes |
| Number of SFP Slots: | 4 |
| Network & Communication | |
| Layer Supported: | 4 |
| Management & Protocols | |
| Manageable: | Yes |
| Management: |
|
| Memory | |
| Standard Memory: | 512 MB |
| Memory Technology: | SDRAM |
| Flash Memory: | 1 GB |
| Power Description | |
| PoE (RJ-45) Port: | Yes |
| Input Voltage: |
|
| Power Source: | Power Supply |
| Redundant Power Supply: | No |
| Physical Characteristics | |
| Compatible Rack Unit: | 1U |
| Form Factor: | Rack-mountable |
| Height: | 43.9 mm |
| Width: | 442.5 mm |
| Depth: | 336 mm |
| Weight (Approximate): | 5.70 kg |
| Miscellaneous | |
| Certifications & Standards: |
Safety:
Emissions:
Immunity:
IEEE Standards:
|
| Green Compliance Certificate/Authority: |
|
| Warranty | |
| Limited Warranty: | Lifetime |
-
5.7 kg
